| PICTURE | NAME | MODEL | Unit Price EXW USD | TECHNICAL SPECIFICATION | FEATURES | DIMENSION (MM) | PACKAGE | G.W. (KG) | Volume (m³) |

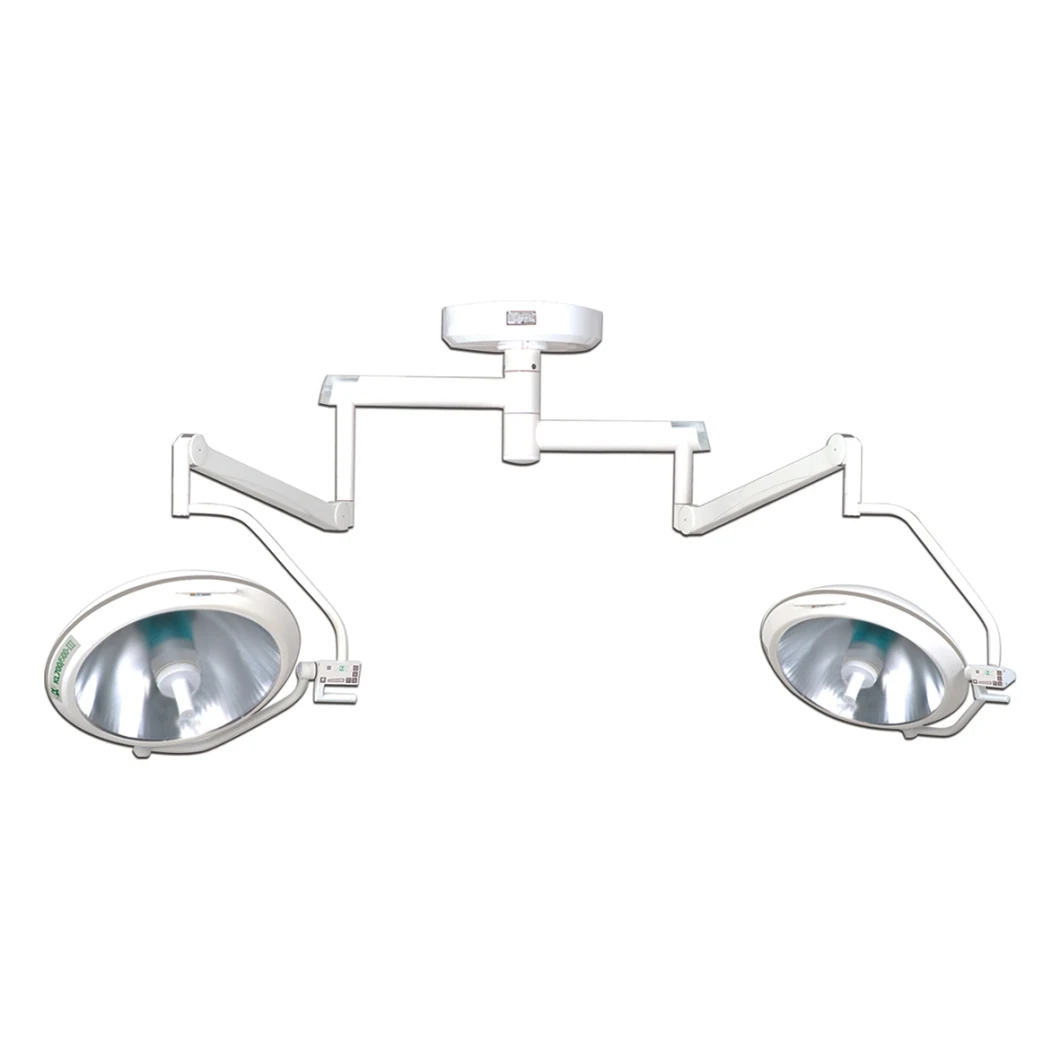

 | integral reflection operation lamp | KL700/700-III | US$2,722 | Illumination:80,000-160,000LX x2(at 1m distance) | 925×925×365 925×925×365 1195×915×400 | 3 cartons | 21.5 21.5 66.5 | 1.07 | |
| Facula diameter:φ100~φ280mm | |||||||||
| Depth of light beam:≥700mm | 1.imported aluminum sheet squamulose reflector | ||||||||
| Brightness adjustment:CPU light-dimmer | 2.imported polish panel | ||||||||
| Shift of major and stand by lamps:automatic | 3.titanium main arm | ||||||||
| Color temperature:4500K±500K | 4.optional imported spring arm | ||||||||
| Temperature rise:≤12ºC | 5.OSRAM halogen bulbs | ||||||||
| Temperature rise on the head of patient:≤2ºC | 6.automatic change to standby bulb in 1/2 second | ||||||||
| Diameter of lamp holder:700mm ×2 | 7.indicator for damaged bulb | ||||||||
| Mains voltage:AC220V±20% 50Hz | 8.dischargeable handle | ||||||||
| Bulb voltage:AC24V Bulb power | 9.battery is optional | ||||||||
| Input power:200VA ×2 | |||||||||
| Height for installation:280-320cm | |||||||||
 | integral reflection operation lamp | KL700/500-III | US$2696 | Illumination:80,000-160,000Lx /60,000-120,000Lx(at 1m distance) | 925×925×365 765×725×320 1195×915×400 | 3 cartons | 21.5 14.5 66.5 | 0.94 | |
| Facula diameter:φ100~φ280mm | |||||||||
| Depth of light beam:≥700mm | 1.imported aluminum sheet squamulose reflector | ||||||||
| Brightness adjustment: CPU light-dimmer | 2.imported polish panel | ||||||||
| Shift of major and stand by lamps:automatic | 3.titanium main arm | ||||||||
| Color temperature:4500K±500K | 4.optional imported spring arm | ||||||||
| Temperature rise:≤12ºC | 5.OSRAM halogen bulbs | ||||||||
| Temperature rise on the head of patient:≤2ºC | 6.automatic change to standby bulb in 1/2 second | ||||||||
| Diameter of lamp holder:700mm/500mm | 7.indicator for damaged bulb | ||||||||
| Mains voltage:AC220V±20% 50Hz | 8.dischargeable handle | ||||||||
| Bulb voltage:AC24V Bulb power | 9.battery is optional | ||||||||
| Input power:200VA ×2 | |||||||||
| Height for installation:280-320cm | |||||||||
 | integral reflection operation lamp | KL500/500-III | US$2,742 | Illumination:60,0000-120,000LX x2(at 1m distance) | 765×725×320 765×725×320 1195×915×400 | 3 cartons | 14.5 14.5 66.5 | 0.79 | |
| Facula diameter:φ100~φ280mm | |||||||||
| Depth of light beam:≥700mm | 1.imported aluminum sheet squamulose reflector | ||||||||
| Brightness adjustment:CPU light-dimmer | 2.imported polish panel | ||||||||
| Shift of major and stand by lamps:automatic | 3.titanium main arm | ||||||||
| Color temperature:4500K±500K | 4.optional imported spring arm | ||||||||
| Temperature rise:≤12ºC | 5.OSRAM halogen bulbs | ||||||||
| Temperature rise on the head of patient:≤2ºC | 6.automatic change to standby bulb in 1/2 second | ||||||||
| Diameter of lamp holder:500mm ×2 | 7.indicator for damaged bulb | ||||||||
| Mains voltage:AC220V±20% 50Hz | 8.dischargeable handle | ||||||||
| Bulb voltage:AC24V Bulb power | 9.battery is optional | ||||||||
| Input power:200VA ×2 | |||||||||
| Height for installation:280-320cm | |||||||||

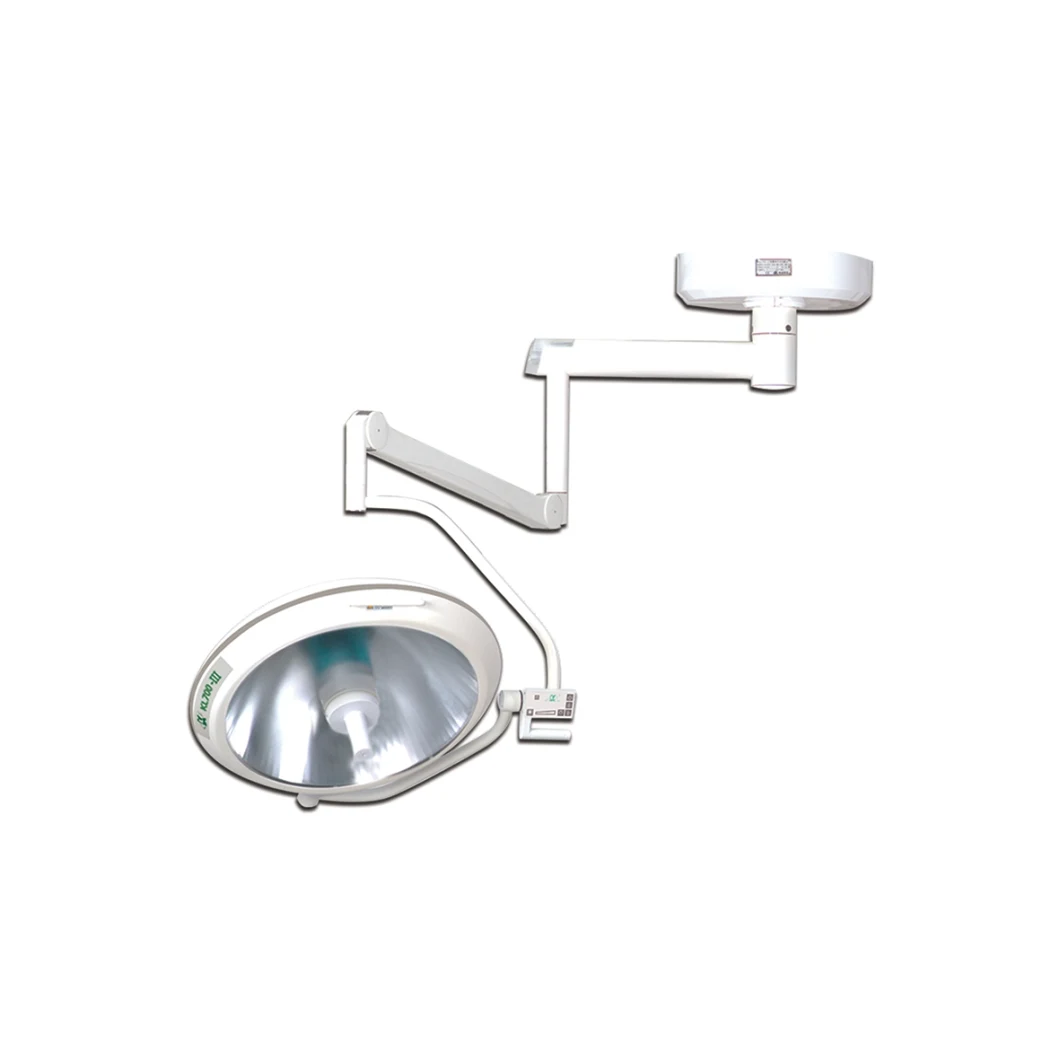

 | integral reflection operation lamp | KL700-III | US$1,411 | Illumination:80,000-160,000LX (at 1m distance) | 925×925×365 1195×915×400 | 2 cartons | 21.5 51 | 0.76 | |
| Facula diameter:φ100~φ280mm | |||||||||
| Depth of light beam:≥700mm | 1.imported aluminum sheet squamulose reflector | ||||||||
| Brightness adjustment:CPU light-dimmer | 2.imported polish panel | ||||||||
| Shift of major and stand by lamps:automatic | 3.titanium main arm | ||||||||
| Color temperature:4500K±500K | 4.optional imported spring arm | ||||||||
| Temperature rise:≤12ºC | 5.OSRAM halogen bulbs | ||||||||
| Temperature rise on the head of patient:≤2ºC | 6.automatic change to standby bulb in 1/2 second | ||||||||
| Diameter of lamp holder:700mm | 7.indicator for damaged bulb | ||||||||
| Mains voltage:AC220V±20% 50Hz | 8.dischargeable handle | ||||||||
| Bulb voltage:AC24V Bulb power | 9.battery is optional | ||||||||
| Input power:200VA | |||||||||
| Height for installation:280-320cm | |||||||||
 | integral reflection operation lamp | KL500-III (ceiling type) | US$1,411 | Illumination:60,000-120,000LX (at 1m distance) | 765×725×320 1195×915×400 | 2 cartons | 12.7 51 | 0.62 | |
| Facula diameter:φ100~φ280mm | |||||||||
| Depth of light beam:≥700mm | 1.imported aluminum sheet squamulose reflector | ||||||||
| Brightness adjustment:CPU light-dimmer | 2.imported polish panel | ||||||||
| Shift of major and stand by lamps:automatic | 3.titanium main arm | ||||||||
| Color temperature:4500K±500K | 4.optional imported spring arm | ||||||||
| Temperature rise:≤12ºC | 5.OSRAM halogen bulbs | ||||||||
| Temperature rise on the head of patient:≤2ºC | 6.automatic change to standby bulb in 1/2 second | ||||||||
| Diameter of lamp holder:500mm | 7.indicator for damaged bulb | ||||||||
| Mains voltage:AC220V±20% 50Hz | 8.dischargeable handle | ||||||||
| Bulb voltage:AC24V Bulb power | 9.battery is optional | ||||||||
| Input power:200VA | |||||||||
| Height for installation:280-320cm | |||||||||
 | integral reflection operation lamp | KL500-III (AC/DC) | US$1,774 | Illumination:60,000-120,000LX (at 1m distance) | 1060×710×910 | 1 wooden case | 116 | 0.69 | |
| Facula diameter:φ100~φ280mm | |||||||||
| Depth of light beam:≥700mm | 1.imported aluminum sheet squamulose reflector | ||||||||
| Brightness adjustment:CPU light-dimmer | 2.imported polish panel | ||||||||
| Shift of major and stand by lamps:automatic | 3.titanium main arm | ||||||||
| Color temperature:4500K±500K | 4.optional imported spring arm | ||||||||
| Temperature rise:≤12ºC | 5.OSRAM halogen bulbs | ||||||||
| Temperature rise on the head of patient:≤2ºC | 6.automatic change to standby bulb in 1/2 second | ||||||||
| Diameter of lamp holder:500mm | 7.indicator for damaged bulb | ||||||||
| Mains voltage:AC220V±20% 50Hz | 8.dischargeable handle | ||||||||
| Bulb voltage:AC24V Bulb power | 9.battery is optional | ||||||||
| Input power:200VA | |||||||||

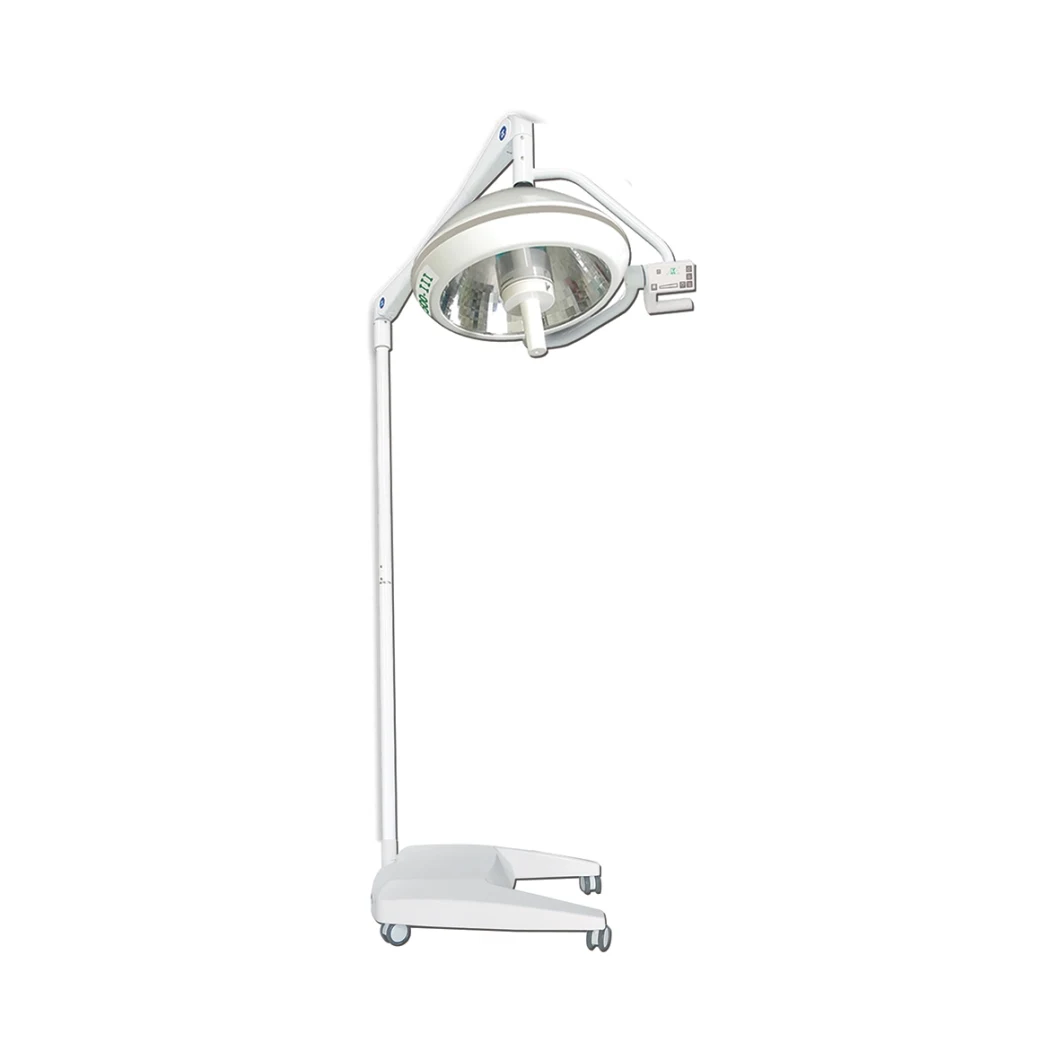

 | integral reflection operation lamp | KL500-III (stand type) | US$1,512 | Illumination:60,000-120,000LX (at 1m distance) | 749×744×354 1050×705×400 | 2 wooden case | 18 74.5 | 0.5 | |
| Facula diameter:φ100~φ280mm | |||||||||
| Depth of light beam:≥700mm | |||||||||
| Brightness adjustment:CPU light-dimmer | 1.imported aluminum sheet squamulose reflector | ||||||||
| Shift of major and stand by lamps:automatic | 2.titanium main arm | ||||||||
| Color temperature:4500K±500K | 3.optional imported spring arm | ||||||||
| Temperature rise:≤12ºC | 4.OSRAM halogen bulbs | ||||||||
| Temperature rise on the head of patient:≤2ºC | 5.automatic change to standby bulb in 1/2 second | ||||||||
| Diameter of lamp holder:500mm | 6.indicator for damaged bulb | ||||||||
| Mains voltage:AC220V±20% 50Hz | 7.dischargeable handle | ||||||||
| Bulb voltage:AC24V Bulb power | 8.battery is optional | ||||||||
| Input power:200VA | |||||||||

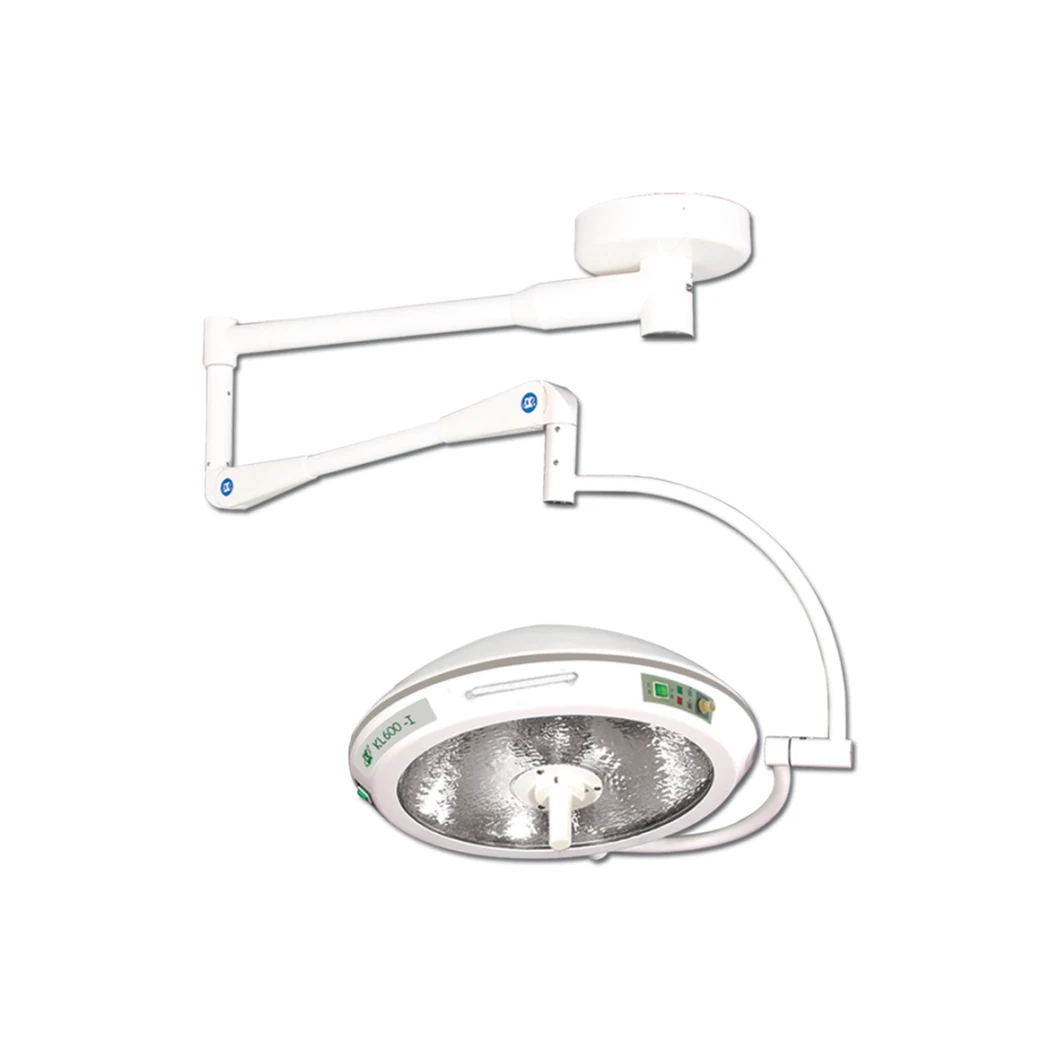

 | integral reflection operation lamp | KL600-II | US$1,310 | Illumination:80,000-140,000LX (at 1m distance) | 925×925×365 1195×915×400 | 2 cartons | 21.5 51 | 0.76 | |
| Facula diameter:φ100~φ280mm | 1.imported aluminum sheet squamulose reflector | ||||||||
| Depth of light beam:≥700mm | |||||||||
| Brightness adjustment:CPU light-dimmer | 2.imported polish panel | ||||||||
| Shift of major and stand by lamps:automatic | 3.titanium main arm | ||||||||
| Temperature rise:≤12ºC | 4.automatic change to standby bulb in 1/2 second | ||||||||
| Temperature rise on the head of patient:≤2ºC | |||||||||
| Diameter of lamp holder:600mm | 5.indicator for damaged bulb | ||||||||
| Mains voltage:AC220V±20% 50Hz | 6.dischargeable handle | ||||||||
| Bulb voltage:AC24V Bulb power | |||||||||
| Input power:220VA | |||||||||
 | integral reflection operation lamp | KL600-II (wall type) | US$1,774 | Illumination:80,000-140,000LX (at 1m distance) | 1024×954×384 1234×954×434 | 2 cartons | 31 74 | 0.9 | |
| Facula diameter:φ100~φ280mm | 1.imported aluminum sheet squamulose reflector | ||||||||
| Depth of light beam:≥700mm | |||||||||
| Brightness adjustment:CPU light-dimmer | 2.imported polish panel | ||||||||
| Shift of major and stand by lamps:automatic | 3.titanium main arm | ||||||||
| Temperature rise:≤12ºC | 4.automatic change to standby bulb in 1/2 second | ||||||||
| Temperature rise on the head of patient:≤2ºC | |||||||||
| Diameter of lamp holder:600mm | 5.indicator for damaged bulb | ||||||||
| Mains voltage:AC220V±20% 50Hz | 6.dischargeable handle | ||||||||
| Bulb voltage:AC24V Bulb power | |||||||||
| Input power:220VA | |||||||||

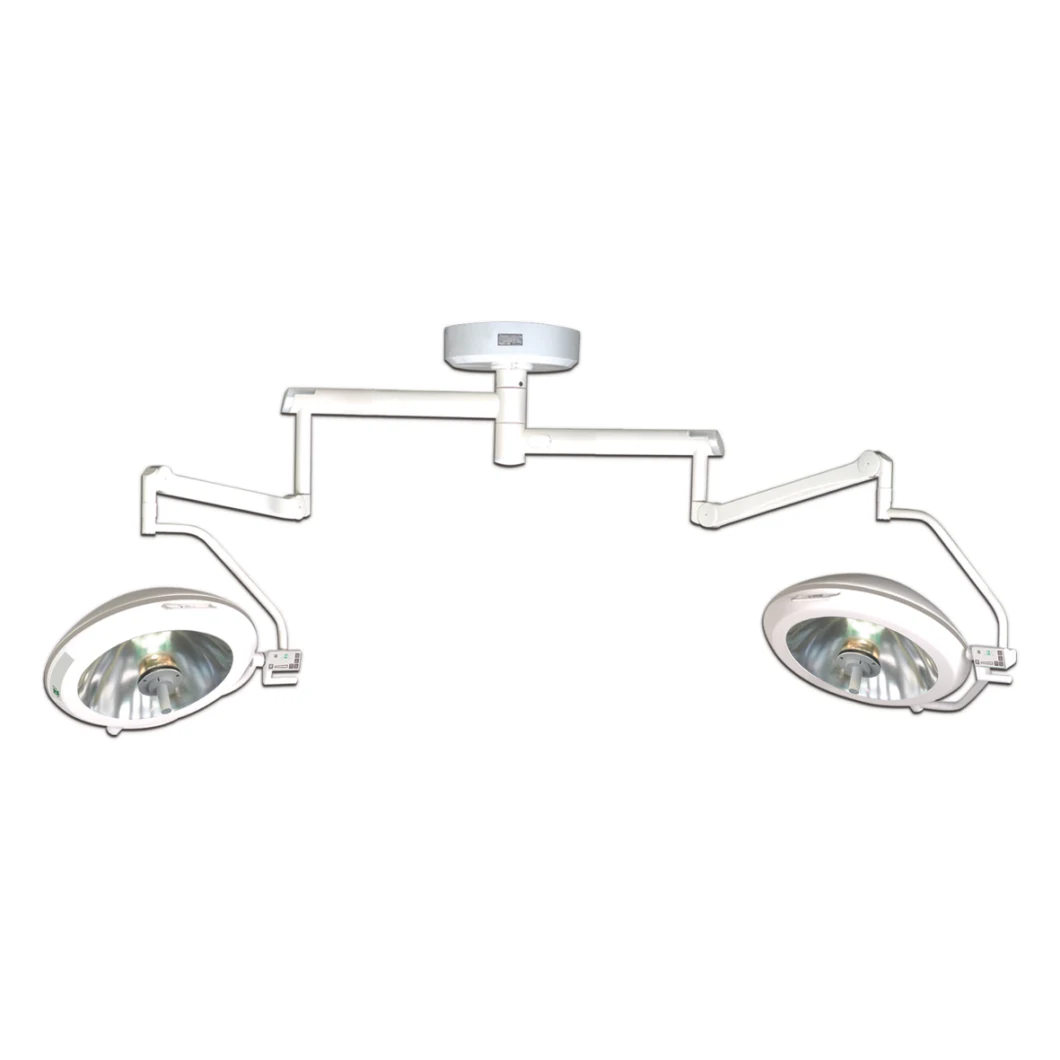

 | integral reflection operation lamp | KL600/600-II | US$2,319 | Illumination:80,000-140,000LX /80,000-140,000LX(at 1m distance) | 925×925×365 925×925×365 1195×915×400 | 3 cartons | 21.5 21.5 66.5 | 1.07 | |
| Facula diameter:φ100~φ280mm | 1.imported aluminum sheet squamulose reflector | ||||||||
| Depth of light beam:≥700mm | |||||||||
| Brightness adjustment:CPU light-dimmer | 2.imported polish panel | ||||||||
| Shift of major and stand by lamps:automatic | 3.titanium main arm | ||||||||
| Temperature rise:≤12ºC | 4.automatic change to standby bulb in 1/2 second | ||||||||
| Temperature rise on the head of patient:≤2ºC | |||||||||
| Diameter of lamp holder:600mm | 5.indicator for damaged bulb | ||||||||
| Mains voltage:AC220V±20% 50Hz | 6.dischargeable handle | ||||||||
| Bulb voltage:AC24V Bulb power | |||||||||
| Input power:440VA |
